Position: 首頁 > FEIZHUO ENGLISH > PRODUCTS > Papermaking nozzle

Dovetail slot fan nozzle

Dovetail groove fan nozzle-Shanghai Feizhuo Spray System Co.,Ltd

Application technology consultation:  Feizhuo@feizhuo.net
Design features
Nozzle at the rear with a dovetail groove, can the counterpoint, convenient installation and replacement.
The distribution of the nozzle is parabolic, through reasonable distribution of adjacent nozzle can form uniform jet plane.
Has a great impact, is used to improve the efficiency of the cleaning and cooling, spray Angle from 20 ° to 120 °.
Dovetail groove and jet fan is fixed deflection Angle, convenient and nozzle configuration, to form a uniform jet plane.
Welding on the header nozzle base, coupling nut size 3/8 ", 3/4 "and 1-1/4".

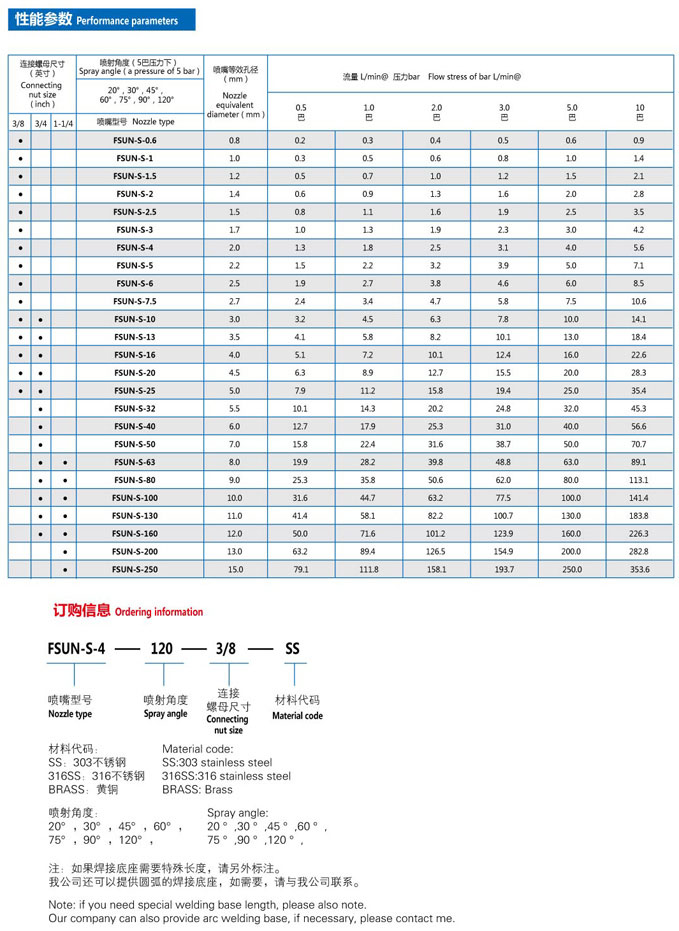

FSUN - S series of nozzle, dovetail groove position and Angle between nozzle arc deflection, convenient nozzle arrangement, in order to realize the uniform jet plane.
3/8 of an inch of nozzle: 5 ° deflection Angle
3/4 inch nozzle: deflection Angle is 15 °
1-1/4 "nozzle: deflection Angle is 15 °
If you don't need deflection, when ordering, please specify
The general application
Papermaking industry, a blanket of screen cleaning spray rod
Roll cooling tube, iron and steel industry
Collections of steel continuous casting cooling tube
Surface treatment with cleaning manifold
